Hidden-line Corner-cutting Wrapping Machine
a.The equipment automatically packs POF shrink film on the surface of the product box, because POF shrink film has high transparency and good gloss, which can clearly display the appearance of the product, improve sensory awareness, and reflect high-grade;
b.The equipment fully automatic packaging POF shrink film can ensure the consistency and reliability of packaging quality;
c.The equipment fully automatic packaging POF shrink film is faster and better than the traditional manual wrapping film, which improves production efficiency, saves production costs and improves the company’s competitiveness;
d.The versatility of the device can be achieved by adjusting the servo drive bit parameters and manually adjusting the machine.
- Overview
- Parameter
- Recommended Products
Equipment introduction:
a.The equipment automatically packs POF shrink film on the surface of the product box, because POF shrink film has high transparency and good gloss, which can clearly display the appearance of the product, improve sensory awareness, and reflect high-grade;
b.The equipment fully automatic packaging POF shrink film can ensure the consistency and reliability of packaging quality;
c.The equipment fully automatic packaging POF shrink film is faster and better than the traditional manual wrapping film, which improves production efficiency, saves production costs and improves the company’s competitiveness;
d.The versatility of the device can be achieved by adjusting the servo drive bit parameters and manually adjusting the machine.

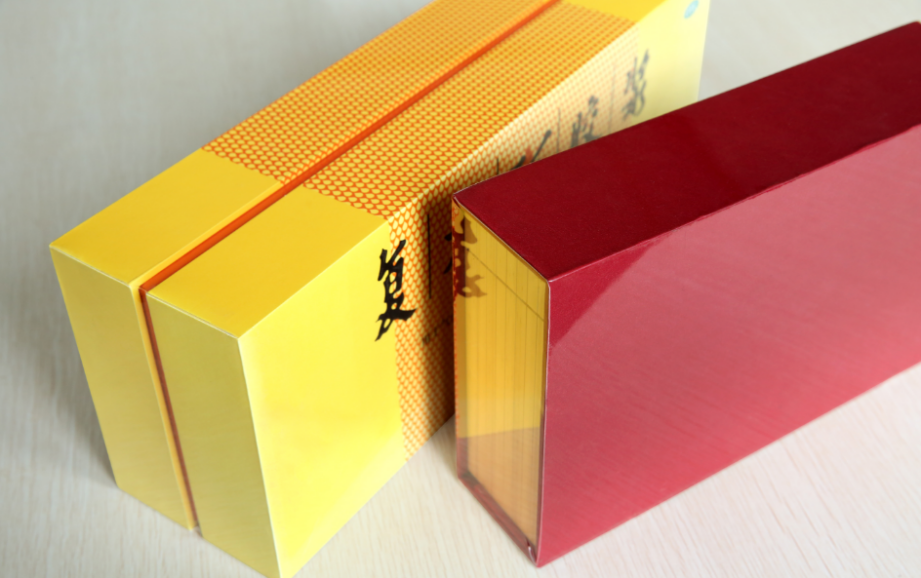

Sample
Parameter
|
Device model |
SKYAT-YX05 |
||||
|
compatible products size |
Length /L |
110mm~320mm |
satisfy： L＋2H＋80≤450mm |
Working height |
900mm±50mm |
|
Width /W |
50mm~150mm |
power supply |
Single phase AC220V 20A50HZ |
||
|
Height/H |
30mm~100mm |
Air source |
0.5-0.7Mpa |
||
|
UPH |
low speed |
320Pcs~450Pcs（according to product size） |
weight |
≈1600Kg |
|
|
high speed |
600Pcs~800Pcs（according to product size） |
||||
|
Product Yield |
≥98% |
Form factor |
2550mm(L)x1160mm(W)x1850mm(H) |
||
Remarks: Equipment dimensions do not include heat shrink furnace dimensions [1800mm(L)×980mm(W)×1280mm(H])
