Double bag making high speed Middle-seal Corner-cutting Wrapping Machine ---ZF03DL
UPH 950 for 100-200mm, 850 for 200-250mm, 800 for 250-300mm. L+H≤430mm, W+H≤320mm. Ideal for mid-size products. Get a demo!
- Overview
- Parameter
- Recommended Products
Core Product Advantages:
1.Wide Compatibility: Accommodates boxes up to 350mm length, 300mm width, 120mm height with condition L+H≤430mm, W+H≤320mm.
2.Stable Gripper Mechanism: Ensures smooth transfer for medium-sized boxes.
3.User-Friendly : Touchscreen interface for easy parameter adjustment and one-click changeover.
4.High Yield: >98% yield rate with precise temperature control and servo-driven film feeding.
Application Scenarios：
 |
 |
 |

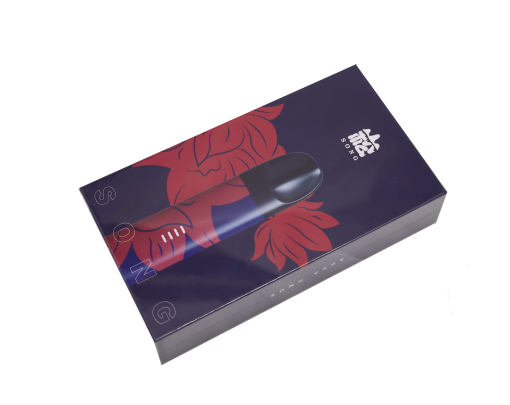

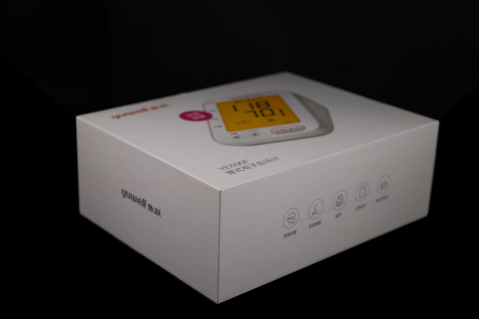

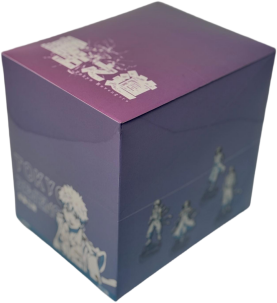

| e-cigarette | Medical instrument packaging | Toy packaging |
Service Guarantee:
1.1 year full machine warranty
2.Free on-site installation and training
3.24/7 remote technical support
4.Spare parts availability
Parameter
| Double bag making high speed Middle-seal Corner-cutting Wrapping Machine ---ZF03DL |
||||||
| Item number | Product Compatible Sizes/mm | |||||
| L (Length) | W(Width) | H (Height) | Sealing Cutter Length | Bag Making Cutter Length | Corner Cutter Length | |
| 1 | 90~300 | 55~200 | 25~120 | 350 | 530 | 130 |
Notes:1.Within the equipment's compatibility range, the product box's external dimensions must meet the following requirements:
Box L + Box H ≤ 430mm, Box W + Box H ≤ 320mm
2.The box inlet direction is shown in the diagram.
UPH
≥950Pcs (Product box length 100~200mm)
≥850Pcs (Product box length 200~250mm)
≥800Pcs (Product box length 250~300mm)
Note: The product box must be free of burrs and sharp corners, have a regular shape, and the membrane material must be cross-linked POF.
